AUDIOCONTROL

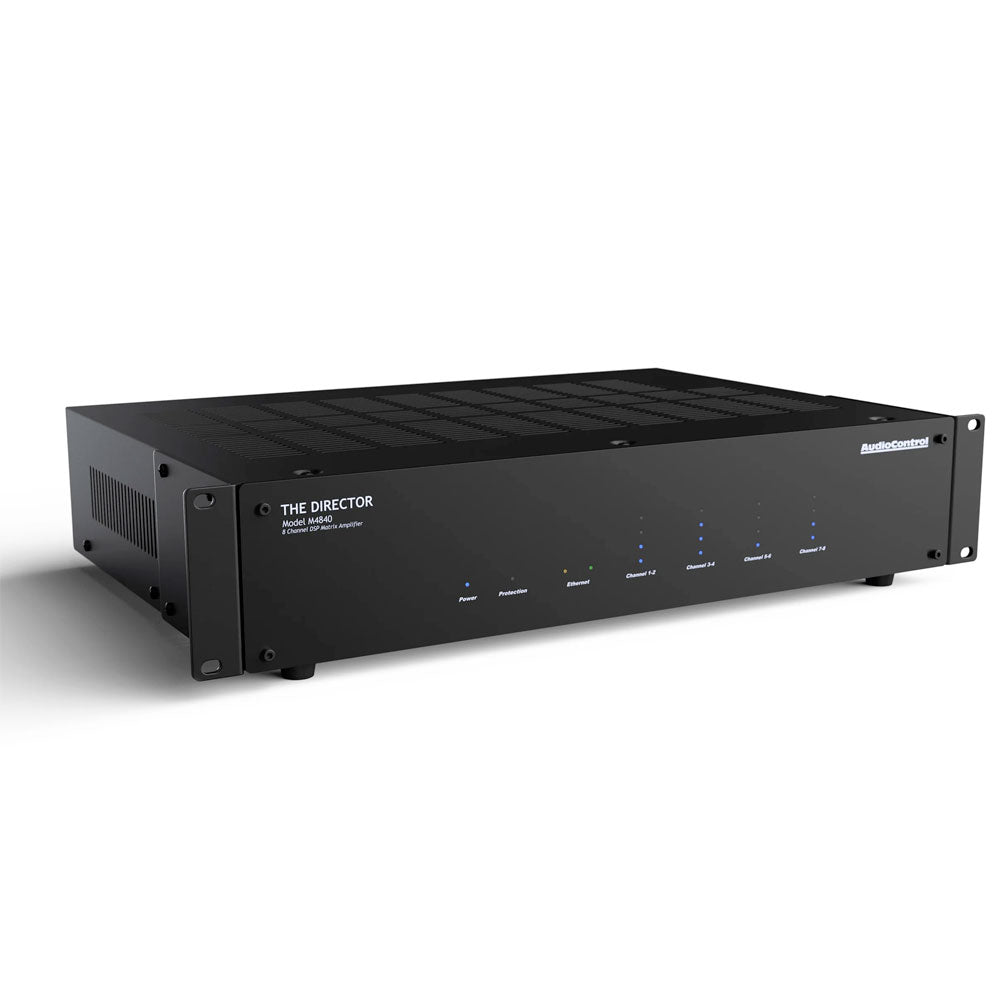

AudioControl M4840 8CH Network Matrix DSP Power Amplifier

AudioControl M4840 8CH Network Matrix DSP Power Amplifier

AC-M4840

$6,499.00 AUD
$0.00 AUD $6,499.00 AUD
Sale Sold out

THE DIRECTOR M4840
8 CHANNEL DSP MATRIX POWER AMPLIFIER

The Director® Model M4840 is a compact, shallow-mount (2U / 11.75”D), eight-channel matrixing amplifier with DSP processing; including EQ, delay, crossover, volume, and built-in speaker profiles, all controllable via network commands. This high performance amplifier delivers an impressive 100 watts per channel, stable into 4 ohms. With four analog stereo and four digital inputs, the M4840 can easily operate as a high performance multi-channel amplifier and amplified audio matrix.



MANUAL

FEATURES

  • Network DHCP Signal Matrix Amplifier With Volume Control
  • 8 Channels x 100 Watts at 8 Ohms (All Channels Driven)
  • 8 Channels x 200 Watts at 4 Ohms (All Channels Driven)
  • Bridgeable to 400 Watts of Bridged Power
  • Digital Signal Processing (DSP) Performance
  • Built-In Speaker Optimization Profiles
  • Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
  • Built-in Matrix Delivering Analog or Digital Inputs to be Routed To Any Zone or Digital Bus Output
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Assignable Names for All Zones & Amplifiers
  • Digital Signal Sense
  • Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
  • AudioControl LightDrive Anti-Clipping Speaker Protection
  • Digital and Analog Inputs with Digital and Analog Pass Thru / Loop Outputs
  • Dual Digital Audio Bus Outputs

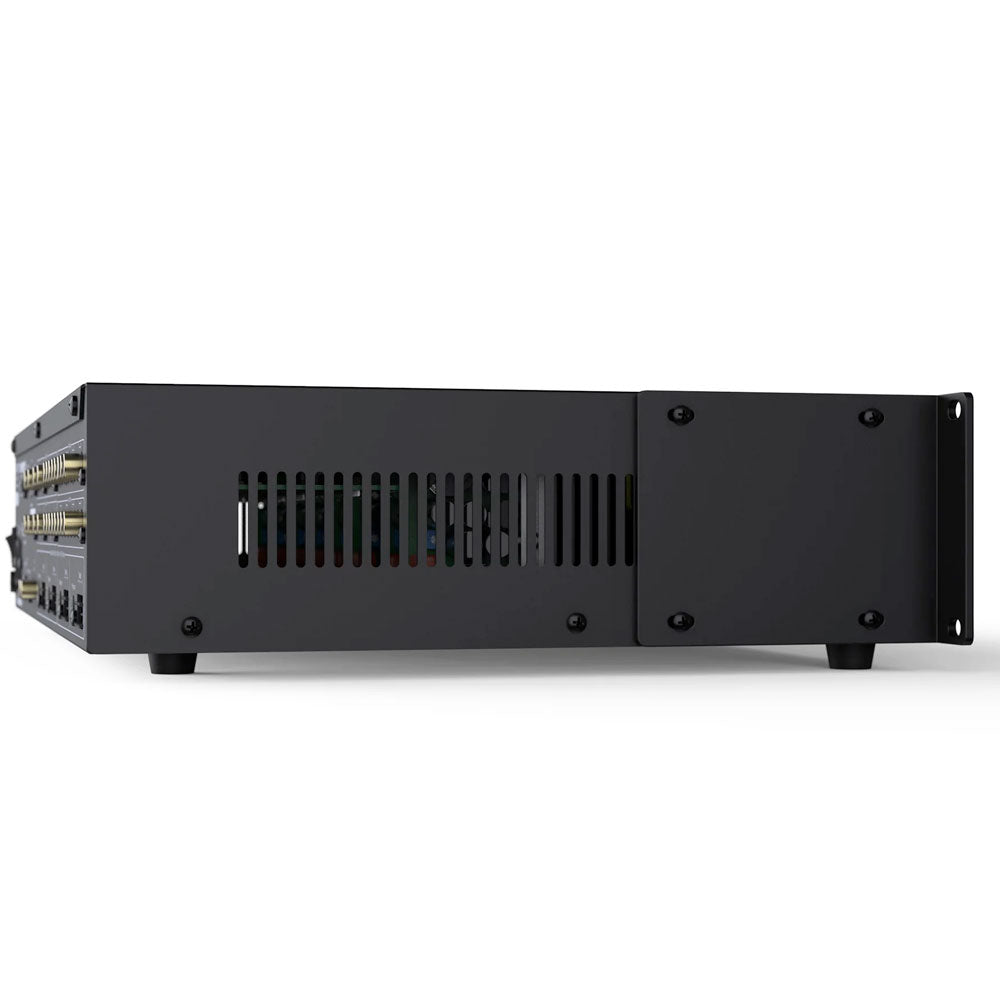

  • Shallow-Mount 2U Rack Space – only 11.75″ deep (Includes Rack Mount Brackets)
  • Home and Commercial Installations

SPECIFICATIONS

Inputs

  • Inputs: 4 Stereo Analog Inputs, 4 Digital Combo Coax/Toslink Inputs
  • Input Sensitivity: 1 Vrms for full output, level at maximum
  • Input Gain: 30 dB

Outputs

  • Amplifier Channels: 8
  • Power Output (8Ω): 100W per channel
  • Power Output (4Ω): 200W per channel
  • Power Output (8Ω Bridged Mono): 400W
  • Minimum Speaker Load: 4Ω

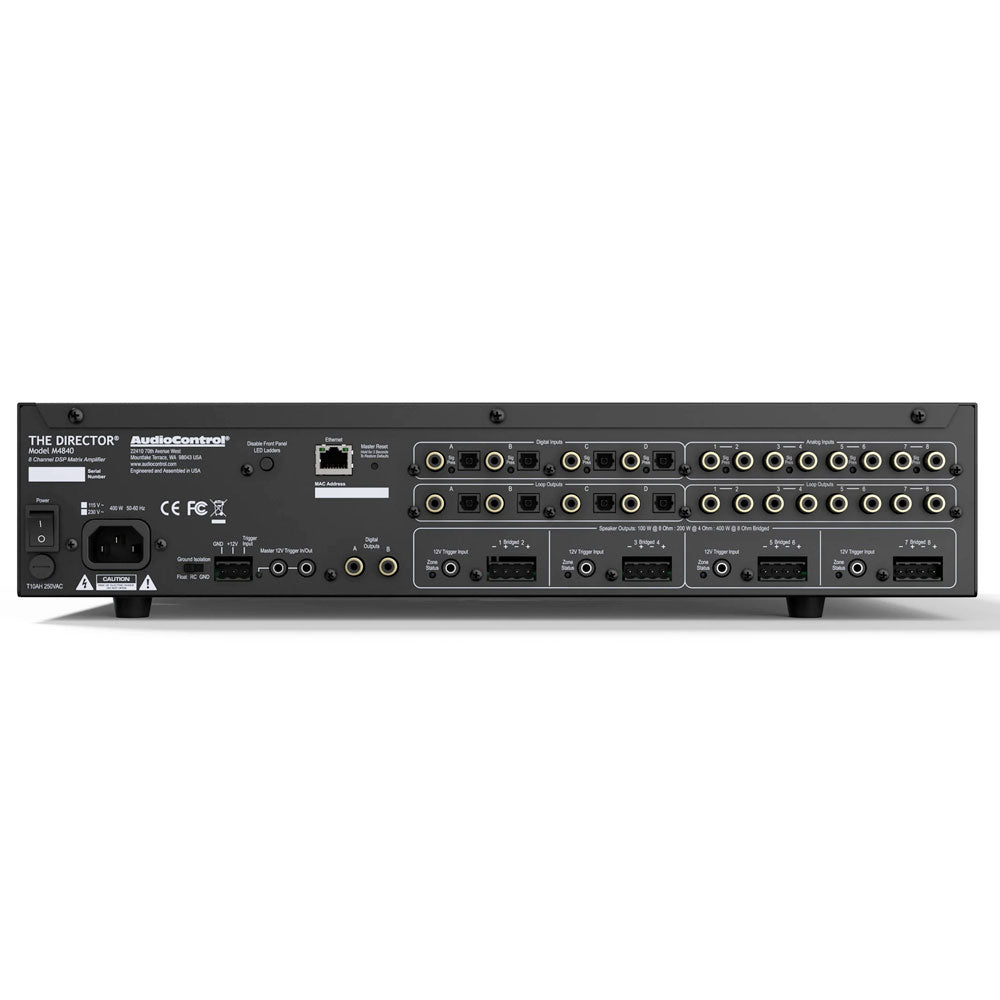

  • Preamp Audio Outputs: 4 Stereo Loop Outputs, 2 Digital Coax Bus Outputs, 4 Digital Combo Coax/Toslink Loop Outputs

Performance

  • Crosstalk: > 80 dB @ 1 kHz
  • Damping Factor: >300
  • Signal to Noise: >95 dB, A-wtd, ref full output
  • Crosstalk: >80 dB @ 1 kHz
  • DAC Specifications: 32 – 96 kHz sample rate, 16/24 bit depth

    Control

  • Remote Power Trigger: +12 VDC or Dry Contact Closure
  • Network Connection/Protocol: 10BaseT Ethernet TCP/IP
  • Communication Protocol: HTTP or Telnet

Weights & dimensions

  • Dimensions: 17” W x 11.75” D x 3.5” H (2U)
  • Weight: 16.5 lbs (7.5 kg)
in the box: The Director Model M4840, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty
