Key Features

• Compact design for versatile placement
• High-quality audio performance
• Seamless integration with professional systems
• Durable build for lasting use
• Optimized for clear, detailed sound
• 2 Way 70/100v Line In-Ceiling Speaker
• 5.25" Polypropylene Woofer
• 0.75" Silk DSPD Tweeter (Pivoting)
• 89dB Sensitivity
• 80Hz - 20kHz Frequency Range
• 120 Degrees Conical Coverage Area
• Trans. Taps: 30w, 15w, 7.5w, 3.8w, 8 Ohm

Product Overview

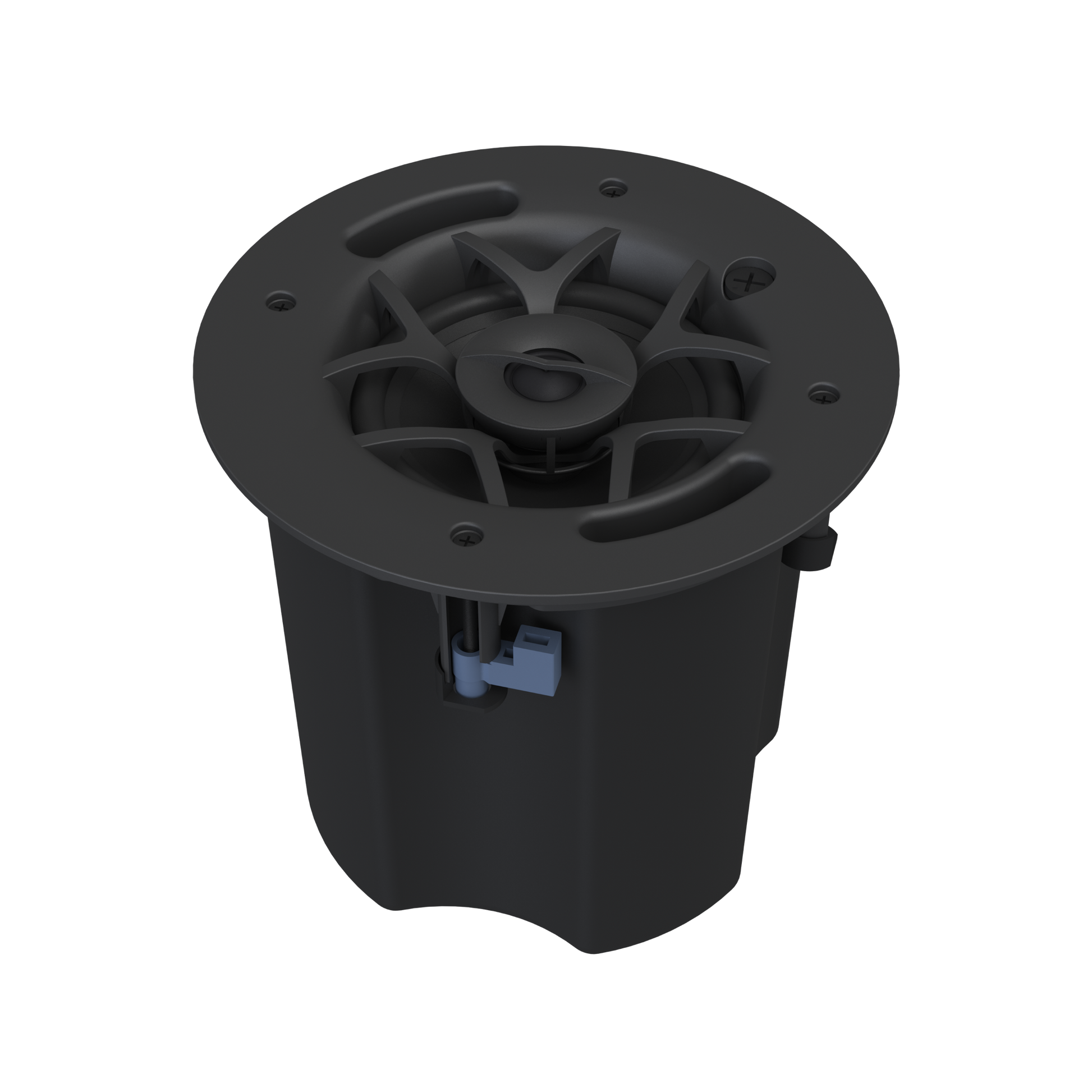

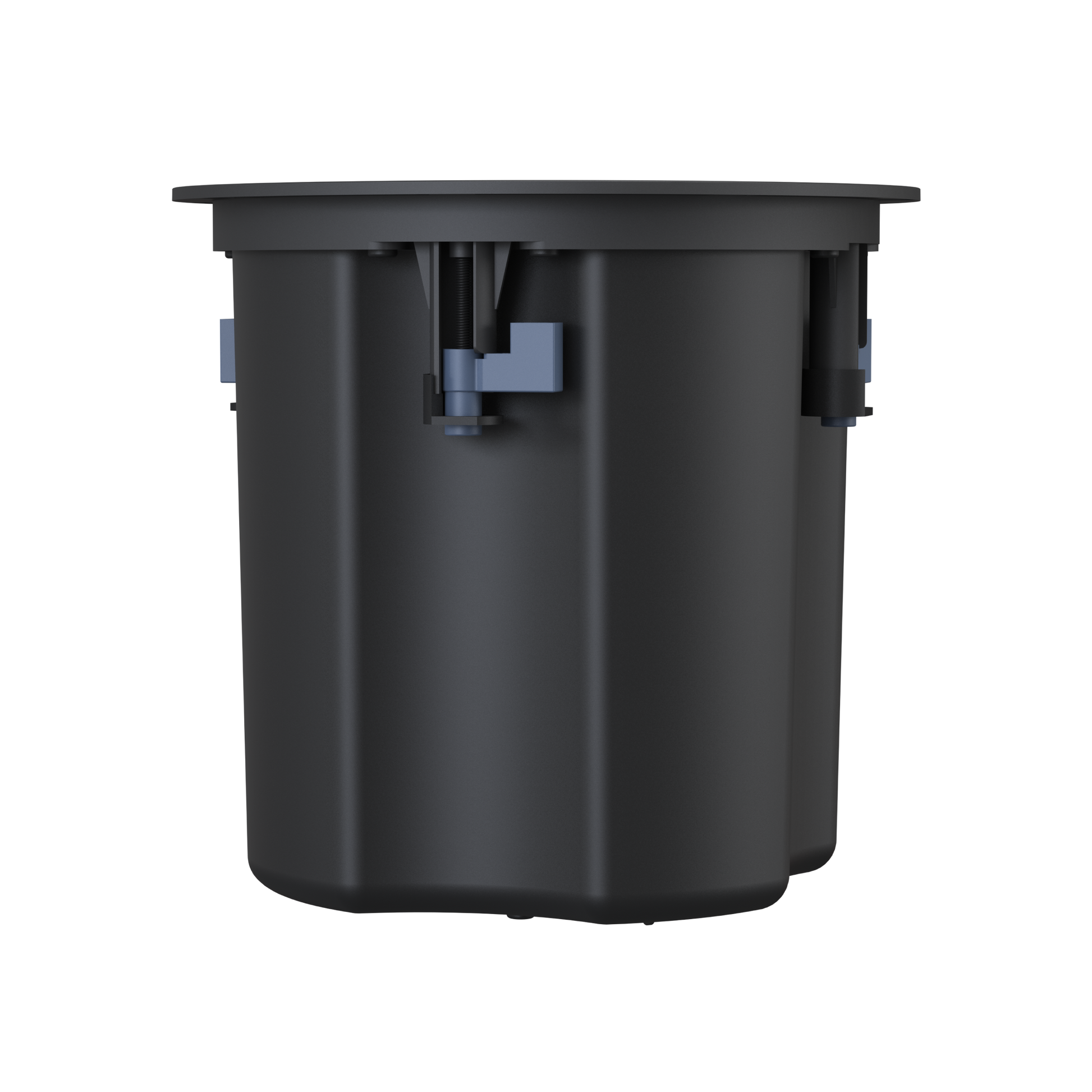

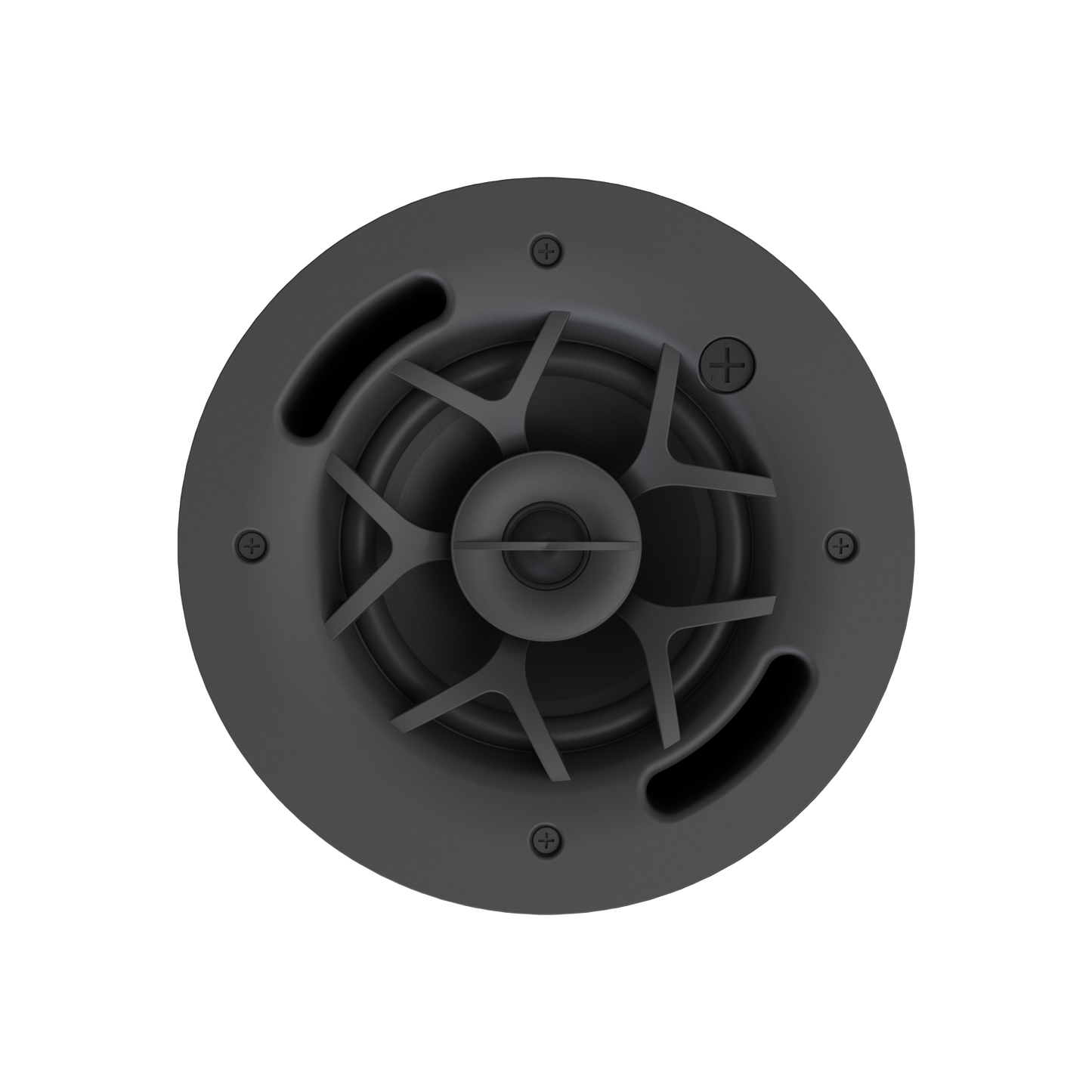

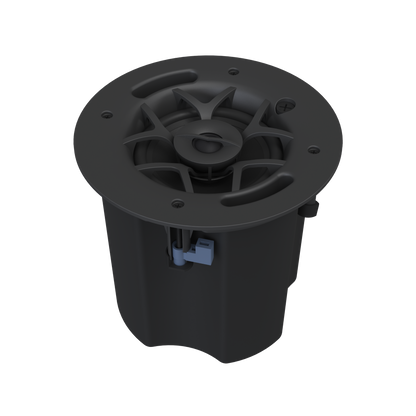

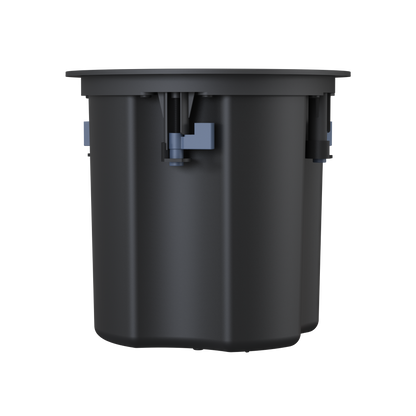

The PC50 speaker from Origin Acoustics' Professional Collection offers premium audio quality in a compact design, suitable for various professional settings.

PC50

Part: SPC50000B, SPC50000W

Woofer: 5 1/4" IMPP

Tweeter: 3/4" Silk DSPD MMP

Power Handling (Program Power): 60 Watts

Power Handling (Continuous Pink Noise): 30 Watts

Frequency Response(-10db): 54Hz - 20kHz

Frequency Response(-3db): 80Hz - 20kHz

Nominal Coverage Angle: 120° Conical Coverage

Sensitivity: 89dB

Rated Maximum SPL: 106dB

Impedance: 6 Ohm/70V/100V

Transformer Taps: 70V - 60W, 30W, 15W, 7.5W, 3.75W | 100V - 30W, 15W, 7.5W

Diameter: 8 1/4" (210mm)

Cutout Diameter: 7 1/2" (190mm)

Grille Diameter: 8 11/16" (220mm)

Mounting Depth: 8" (202mm)

Feature: Metal Can, Zinc Plated

Colors: Black
