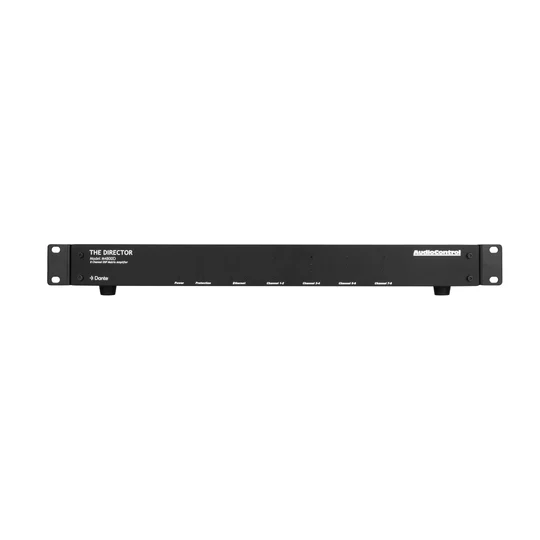

THE DIRECTOR MODEL M4800D
8 CHANNEL HIGH-POWER NETWORK DSP MATRIX AMPLIFIER WITH DANTE
AudioControl Director® M Series amplifiers are among the highest-powered, most flexible multi-zone amplifiers worldwide, designed exclusively for commercial and residential custom integrators. In the most demanding applications for all system amplification and IP programmable signal processing tasks, the Director® M Series Model M4800D has the power and flexibility to operate as a standalone DSP amplifier or partnered with 3rd party over-control systems from companies such as Control4, Crestron, RTI and Savant. Configure graphic and parametric equalization, crossover points, volume settings, zone grouping, network monitoring, and more using the onboard DSP.
The Director® M Series Model M4800D adds Dante input/output matrixing and system integration with additional M4800D and AudioControl CM series amplifiers. Using the Dante Controller, physical M4800D inputs become virtual sources that are available to other Dante devices with input/amplification capabilities. Dante Controller may be used to route Dante sources from any device, making them accessible from the input selection menu and/or an automation system.
8CH, 100-watt channels into 8 Ohms become 200 watts per channel with 4-Ohm loudspeaker loads. When two channels bridge outputs, that single channel produces 400 watts into 8 Ohms, more than enough power for even the most demanding loudspeaker configurations. Two digital input busses selectable between Coaxial and TOSLINK with Coaxial outputs may be matrixed, along with every analog zone input to any zone or all zone outputs. Built-in speaker profiles from AudioControl’s Sound Partners™ program members offer M Series DSP-optimized tonally balanced speaker calibrations from a growing list of prominent loudspeaker manufacturers.
Discover for yourself the countless critical ways in which AudioControl Director® M Series amplifiers, designed, engineered, and manufactured in Seattle, USA, contribute to successful commercial or residential systems.
FEATURES
- Digital and analog input matrix
- High-resolution digital inputs, 32-96 kHz, 16/24-bit digital signals
- 100 watts per channel at 8 ohms, or 200 watts at 4 ohms, all channels actively driven
- Bridged for mono operation for 400 watts per bridged zone at 8 ohms.
- Discrete amp modules designed for long-term operation and optimal audio performance.
- Superior sound quality
- Energy-efficient Class D amplifier technology
- LightDrive Anti-clipping
- Control system integration
- Digital Signal Processing
- Graphic and Parametric equalization settings
- Customizable high-pass and low-pass crossover filters
- Speaker profiles designed by popular speaker manufacturers
- Dante spoken here
- Self-resetting protection features
- Backed by a conditional five-year warranty.
POWER AND CONTROL AT YOUR FINGERTIPS
SPEAKER OPTIMIZATION PROFILES
AUDIOCONTROL SOUND PARTNERS™
SPECIFICATIONS
INPUTS Digital Inputs: 4 Stereo Analog Local Inputs. Analog Inputs: 4 Coaxial/TOSLINK S/PDIF Inputs. Dante Inputs: 16 channels (Broadway chipset). Input Sensitivity: 1 Vrms for full output, level at maximum
OUTPUTS
Amplifier Channels: 8 Power Output (8Ω): 100W per channel Power Output (4Ω): 200W per channel Power Output (8Ω Bridged Mono): 400W Minimum Speaker Load: 4Ω Preamp Outputs : 2 Coaxial Digital S/PDIF BUS Outputs Dante Outputs – 16 channels (Broadway chipset)
PERFORMANCE
Signal to Noise Ratio: >95 dB, A-wtd, ref full output DAC Specifications: 32 to 96 kHz sample rate, 16-/24-bit depth |
