AUDIOCONTROL

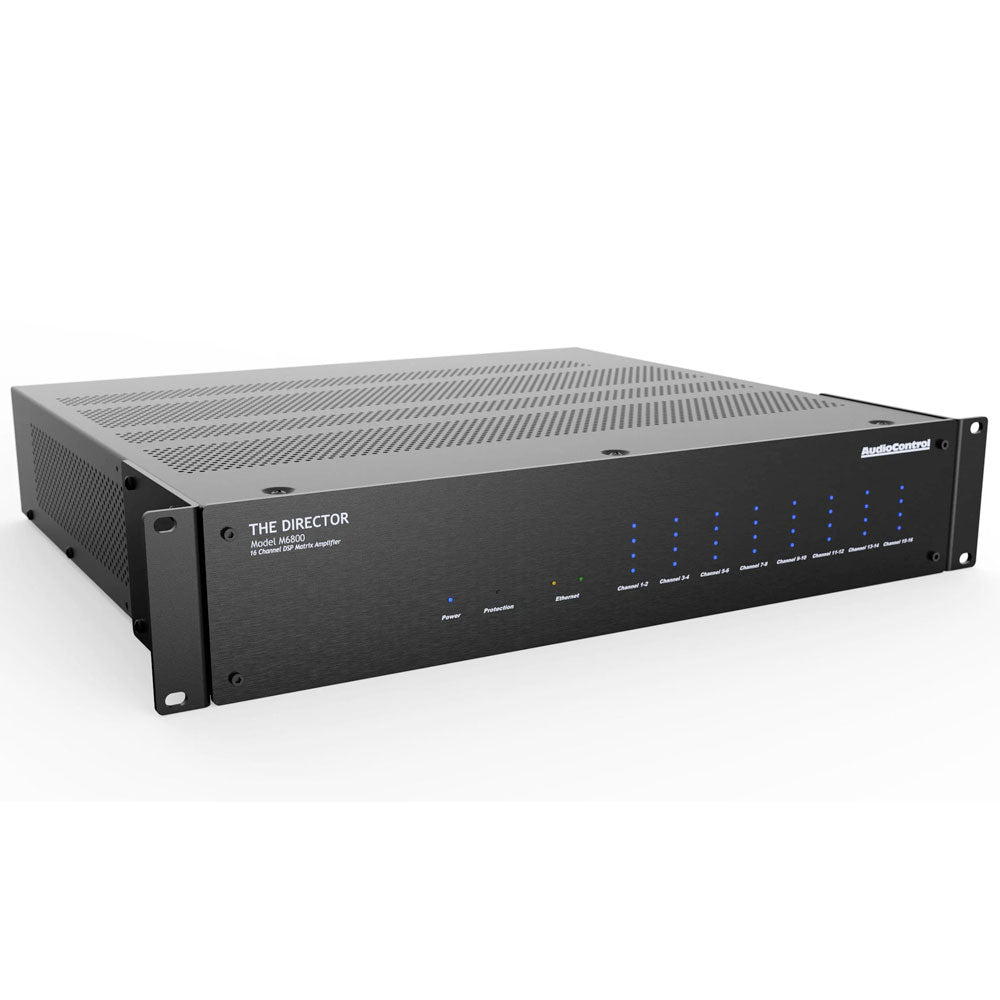

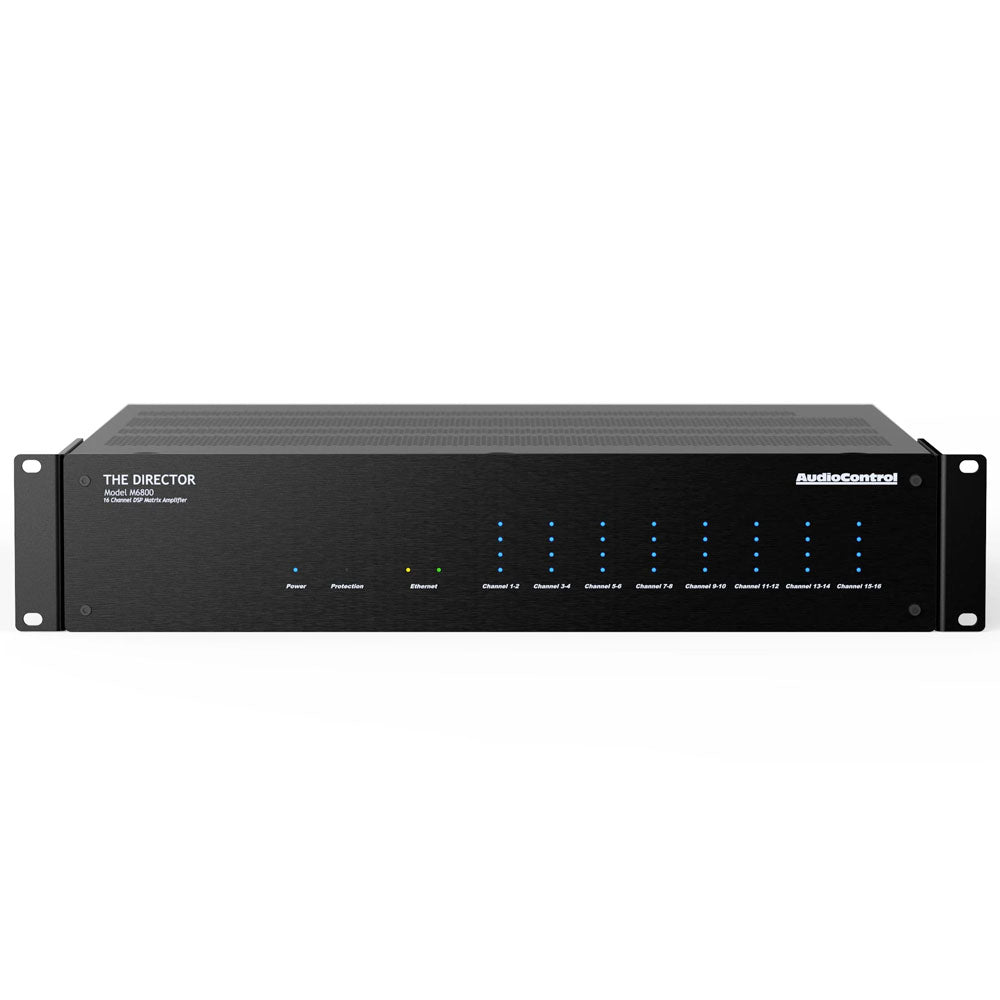

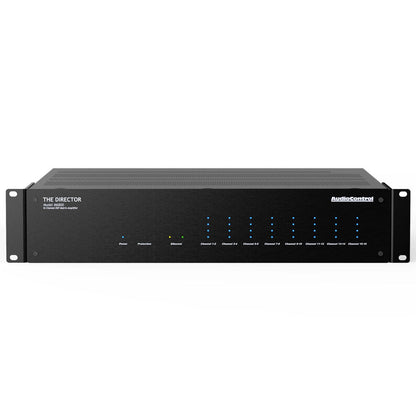

AudioControl M6800 16CH Network Matrix DSP Power Amplifier

AudioControl M6800 16CH Network Matrix DSP Power Amplifier

SKU:AC-M6800

Regular price $11,999.00 AUD
Regular price $0.00 AUD Sale price $11,999.00 AUD
Sale Sold Out

Email: sales@oceanicdistribution.com for any sales enquiries

DIRECTOR M6800
16 CHANNEL MULTI-ZONE NETWORK MATRIX AMPLIFIER

When a whole-house audio system demands high levels of audio performance, but the physical installation space is limited, the AudioControl Director M6400 and M6800 are ideal solutions. Requiring only two rack spaces, the M6400 16 channel power amplifier produces at least 65 Watts per channel into 8 Ohms, and 100 Watts per channel into 4 Ohms, with all channels driven. The M6800 produces at least 100 Watts per channel into 8 Ohms, and 200 Watts per channel into 4 Ohms. Extensive protection features prevent damage to your loudspeakers.

These 16 channel power amplifiers provide high levels of power, pristine sound quality, flexible matrix input switching, plus a number of installation-friendly features that makes them the perfect product for performance oriented audio systems. The Introduction Director M6400 and M6800 are American-designed and built, “set and forget” components which will provide a lifetime of trouble-free service for your multi-room audio system. The Director M6400 and M6800 are designed and manufactured by AudioControl, the only electronics company in the world that specializes in amplifiers, equalizers, signal processors and audio analyzers. Our passion for high quality, meticulous attention to detail, and pro sound heritage shows itself in the dozens of awards we have won for our designs, products, and service.



FEATURES

    • Digital and Analog Input Matrix
    • High Power Levels
    • Superior Sound Quality
    • Unparalleled Energy Efficiency
    • Ethernet Control
    • Signal Processing
    • LightDrive Anti-clipping
    • Self Resetting Protection Features
    • Pacific Northwest Heritage
    • 16 channels of AudioControl amplification
    • Any zone can play any input source
    • Efficient power amplifiers and power supplies
    • Power consumption is less than 2 Watts in standby
    • Rack mountable 2U form factor
    • Removable rack ears
    • Light weight
    • Stackable with other Director or Architect Models
    • Signal sense independent for each zone
    • Input assignment independent for each zone
    • Super wonderful signal processing allows for a wide variety of EQ options and adjustments
    • 12V Master trigger usable with contact closure or 12V external source
    • A and B digital inputs assignable to any zone •
    • A and B digital outputs assignable from any analog or digital input
    • Analog RCA loop-through outputs

DSP Presets


Origin Acoustics
C63 D106
C65 D107
C67 D108
C69 D109
CIW60 D38
CIW61 D38 w/Dsub6
CIW63 D39
CIW65 D57
D104 D59
D105 D61
D89 DBA10
D61DT D81
D62 D82
D63 D83
D63DT D83-A
D64 D83DT
D65 D84
D66 D85
D67 D86
D68 D87
D69 D88
Dsub6 MOS36
LS44 Bollard 360 [2]
LS64 Big Bollard 180
OS54 Big Bollard 360
OS55 Big Bollard 360 No
Sub
OS56 ORSsub
OS57 D38 (NO SUB)
OS64 D38 & D6
ORS65 D38 & D8
OS66 D38 & D10
OS67 D56 (NO SUB)
ORS85 D56 & D6
ORS85-Sub D56 & D8
OSUB10 D56 & D10
LSB64 (Sat) 180 D58 (NO SUB)
LSB64 (Sub) 180 D58 & D6
LSB64 (Sat) 360 D58 & D8
LSB64 (Sub) 360 D58 & D10
LSB64(Sat_Sub)180 AcScape
LSB64(Sat_Sub)360 OW-8
Bollard 180

Ambisonic
LSR6 w/o Sub 10HDR-AW
LSR6 w/ Sub 12HDR-AW
LSR8 w/o Sub 112HD/212HD
LSR8 w/ Sub S11BP
6.5HD 12BP-IG
6.5HD2 S28BP


Stealth Acoustics
B30/B22G Inv. SR430 Stingray LRx83 Invisible
LR8G Inv. Stingray8 LRx85 Invisible
LR6G Inv. Stingray6 StingRay 6 Outdoor
LR4G Invisible StingRay 8 Outdoor
LR3G Invisible Image III On-wall Art Speaker


Krix
MX-5 MX-30
MX-10 MX-40
MX-20


Monitor Audio
CLG140 (HP @200) CLG-W12 (w/ CLG140)
CLG160 CLG-W12 (w/
CLG160)
IV140


Dynaudio
S4-C65 S4-W65
S4-C80 S4-W80
S4-LCR65W RCC


Gray
C40 S80
C50 C40 With S80
C50 With S80


James Loudspeaker
42SA-4 63SA-8HO.8
53SA-7 101SA-6
63SA-4 540SAS-4
63SA-7HO QXC820 (w/sub
80Hz)
63SA-
8HO.8
ST8-70
AT32-70 ST10-70
AT42-70 ST12-70
AT62-70 ST15-70


Nuvo
NV-2IC6 NV-2IW6
NV-2IC6-ANG NV-2IW5-LCR
NV-2IC6-DVC NV-4IC6
NV-2IC8 NV-4IC6-ANG
NV-2IC8-ANG NV-4IC6-DVC
NV-4IC8 NV-6IC6-ANG
NV-4IC8-ANG NV-6IC8
NV-4IW6 NV-6IC8-ANG
NV-4IW5-LCR NV-6IW6
NV-6IC6 NV-6IW6-LCR


Savant\Artison
STUDIO 39-SB PORTRAIT LCR-DM
STUDIO 46-SB ARCHT-6
SKETCH LCR-DM ARCHT-8


Totem
KIN In-Ceiling AIC6 Slim KIN In-Ceiling IC81
KIN In-Wall IW6 Slim KIN In-Ceiling IC62
KIN In-Wall IW8 Slim KIN In-Ceiling IC82
KIN In-Ceiling IC6 Slim KIN In-Wall
KIN In-Ceiling IC8 Slim KIN In-Ceiling Angled
KIN In-Ceiling IC62ST KIN Side/Center
KIN In-Ceiling IC61 KIN In-Ceiling IC62ST/W BACKB
KIN In-Ceiling IC61/W BACKBOX TRIBE IN-WALL
KIN In-Ceiling IC81/W BACKBOX TRIBE IN-CEILING
KIN In-Ceiling IC62/W BACKBOX TRIBE SIDE/CENTER
KIN In-Ceiling IC82/W BACKBOX


Triad Speakers
InCeiling Bronze Sealed InCeiling Mini Sealed
InCeiling Silver Sealed


Amina
Mobius 5i ALF 100 SM
Mobius 7i


Leon
Terra Tr50-MT Terra LuminSound TrLS50
Terra Tr50-MTM Tr SUB-12
Terra Tr60 Axis AxPD-80
Terra Tr60-MT Axis AxPD-60
Terra Tr60-MTM Axis AxPD-UT









  • SPECIFICATIONS

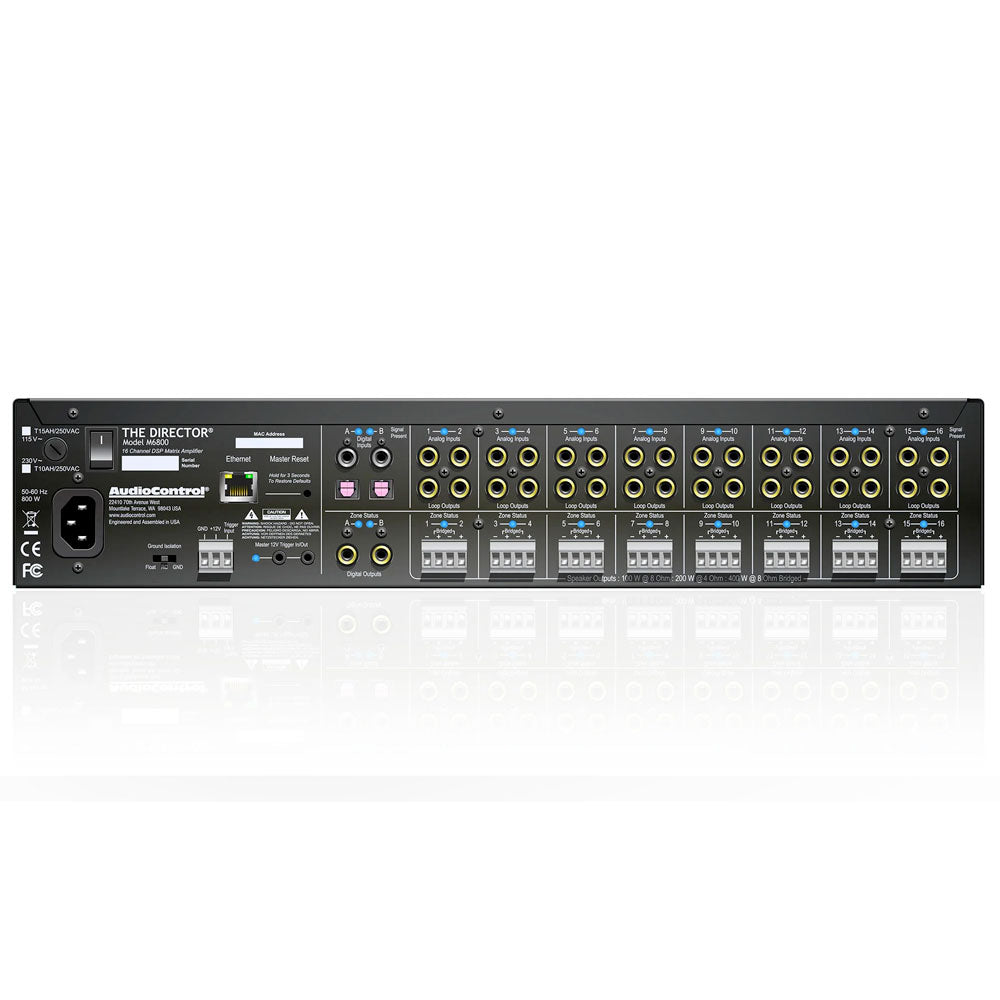

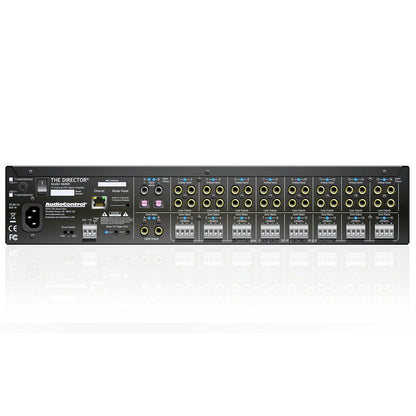

INPUTS
Inputs: 7 RCA Unbalanced, 7 XLR Balanced
Input Sensitivity: 1.42 Vrms for full output
Maximum Input Voltage: 2.7 Vrms
Input Impedance: 100 kΩ
OUTPUTS
Amplifier Channels: 16
Power Output (8Ω): 100 watts per channel
Power Output (4Ω): 200 watts per channel
Power Output (8Ω Bridged Mono): 400 watts
Minimum Speaker Load: 4Ω

CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure
GENERAL
Power Consumption (Standby): < 2W
Power Consumption (Idle): 53W
Power Consumption (1/8 power): 330W
Power Consumption (maximum): 2400W
BTU/Hour Output (Standby): 6.8 BTU/hr
BTU/Hour Output (Idle): 180 BTU/hr
BTU/Hour Output (1/8th power, loud listening level): 460 BTU/hr
BTU/Hour Output (maximum): 2124 BTU/hr
Protection: clipping, short circuit, thermal, DC offset
WEIGHT & DIMENSIONS
Dimensions: 19”W x 17”D x 3.2”H (2U)
Weight: 43.0 lbs (19.5 kg)
IN THE BOX
M6800, Power Cord, Manual, Warranty
