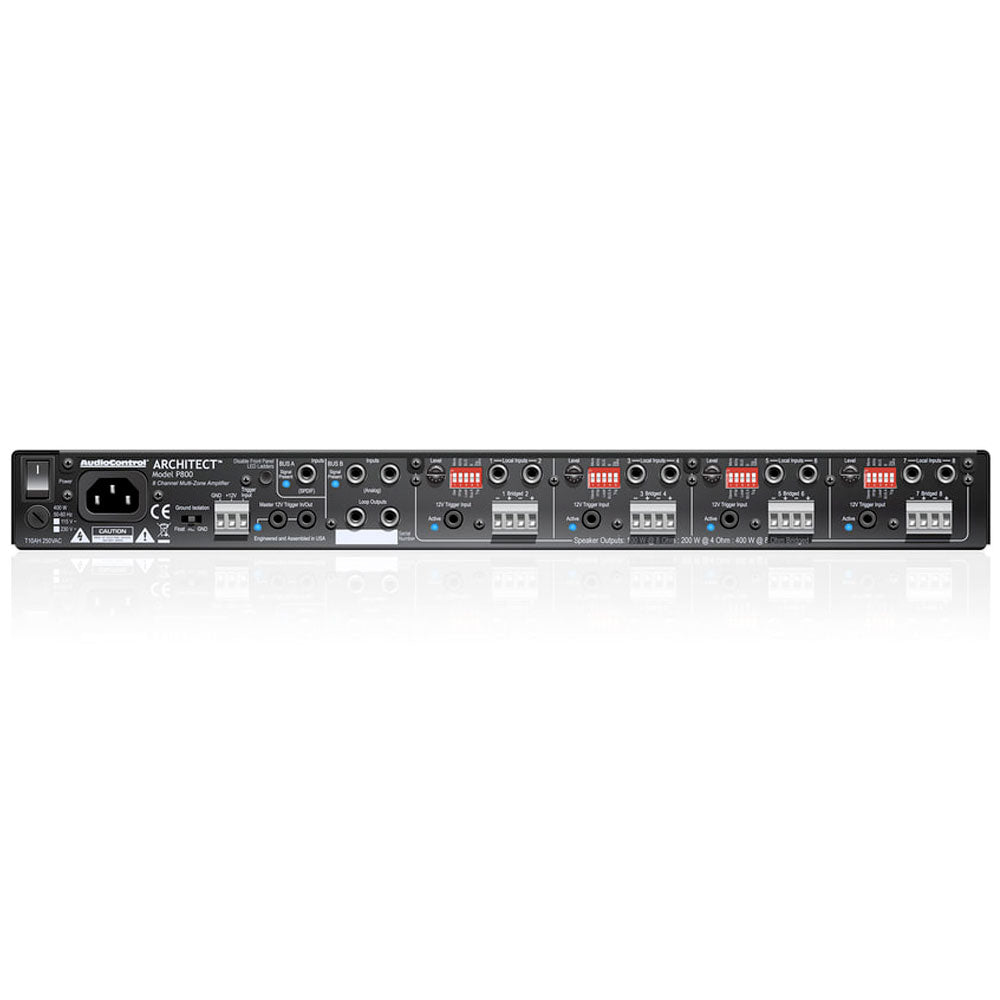

ARCHITECT MODEL P800
8 CHANNEL MULTI-ZONE HIGH-POWER AMPLIFIER
The Architect ‘P’ Series superbly complements AudioControl’s popular high-power Architect multi-zone amplifier series with an industry leading 100 Watts RMS per channel into 8 ohms, 200 watts per channel into 4 ohms; all channels driven.
The P800 uses a cool running proprietary design, including AudioControl’s LightDriveTM anti-clipping protection and features input busing capability, output pass-thru, master 12V trigger in/out plus local 12V trigger inputs on all zones, signal sensing as well plus coax SPDIF inputs for digital sources.
Available in a robust black powder coat finish, the Architect Model P800 is designed, engineered and manufactured at AudioControl’s manufacturing facilities located in Seattle, USA. The Architect ‘P’ series comes with AudioControl’s legendary 5-year warranty and is available exclusively to the residential custom install and pro audio markets through AudioControl authorized dealers.
The P800 uses a cool running proprietary design, including AudioControl’s LightDriveTM anti-clipping protection and features input busing capability, output pass-thru, master 12V trigger in/out plus local 12V trigger inputs on all zones, signal sensing as well plus coax SPDIF inputs for digital sources.
Available in a robust black powder coat finish, the Architect Model P800 is designed, engineered and manufactured at AudioControl’s manufacturing facilities located in Seattle, USA. The Architect ‘P’ series comes with AudioControl’s legendary 5-year warranty and is available exclusively to the residential custom install and pro audio markets through AudioControl authorized dealers.
FEATURES
- 8 Channels of High Power and AudioControl Performance
- 100 watts per Channel at 8 Ohms (All Channels Driven)
- 200 watts per Channel at 4 Ohms (All Channels Driven)
- Bridgeable as an 4 channel amplifier at 400 watts
- Low Standby Current Draw of Less Than 1 Watt
- Compact Design Fits into 1 Rack Space
- LightDriveTM Anti-Clipping Protection Circuitry
- 2 x Input Buses (Digital and Analog)
- Local Zone Input Trigger
- 12v Trigger Input and Output
- Signal-Sensing On All Channels
- Input Busing and Level Controls
- Mono-switch for Improved Bridging
- Beefy Rack Mount Brackets Included
- Five Year AudioControl Warranty
SPECIFICATIONS
|
INPUTS
Inputs: 4 Stereo Local Analog Inputs, 1 Stereo Bus Digital Input, 1 Stereo Bus Analog Input Input Sensitivity: Variable 0-1 Vrms Analog Input Sensitivity: 1 Vrms for full output; level at maximum
OUTPUTS
Amplifier Channels: 8 1 Stereo Bus Analog Output Power Output (8Ω): 100W per channel Power Output (4Ω): 200W per channel Power Output (Bridged Mono): 400W Minimum Speaker Load: 4Ω
PERFORMANCE
Damping Factor: >200 Signal to Noise: >105 dB, (A-wtd, ref full output) Crosstalk: >80 dB @ 1kHz Gain: 30 dB Analog Input Sensitiviy: 1 Vrms for full output, level at maximum DAC Specifications: 32 – 96 kHz sample rate, 16/24 bit depth
CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure, 2 x 1/8″ TS mono in/out |
