OCEANIC CABLE

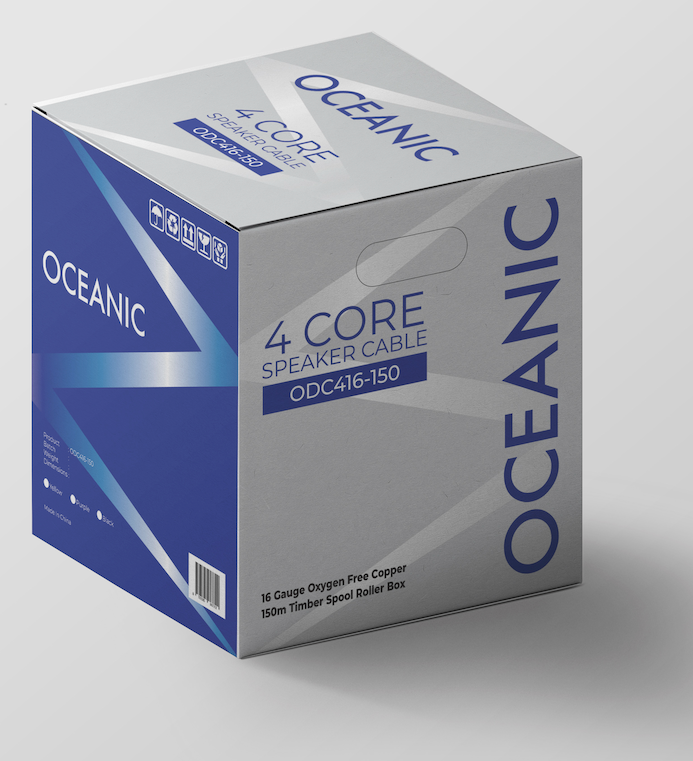

Oceanic 4 Core Speaker Cable 16 AWG - Black
Oceanic 4 Core Speaker Cable 16 AWG - Black
SKU:OC-ODC-416-150-B
Regular price
$630.00 AUD
Regular price
$280.00 AUD
Sale price
$630.00 AUD
Unit price
per
Email: sales@oceanicdistribution.com for any sales enquiries
Speaker cable designed for optimal performance.
This high-quality cable features 4 x 14 AWG conductors composed of 105 strands of oxygen-free copper, for excellent signal transmission and durability.
Applications:
High End Professional Audio In-Wall Rated, Home Theater Grade, Speaker Audio
Features:
- 99.97% Oxygen Free bare copper conductors
- High Strand Count
- Ultra Flexibility
- Easy Pull Coated PVC jacket
- Easy Strip Construction
- ULListed, CMR In-Wall Rated, NEC CL2, and CEC CMG FT4; RoHS, CE
Construction:

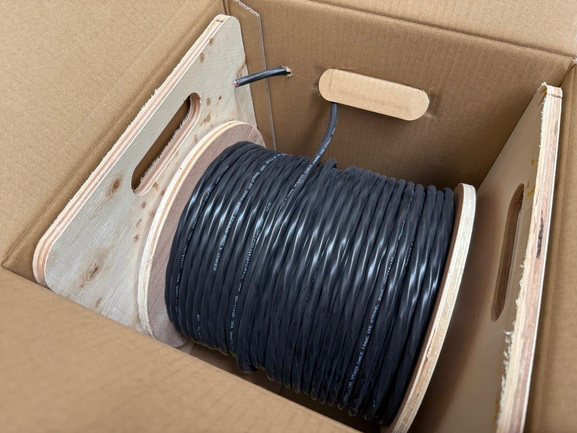

This cable consists of high strand count insulated oxygen free copper conductors in twisted pair construction (unshielded) with easy strip PVC jacket. Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.
Specifications
| Feature | Specification |
|---|---|
| Regulatory Compliance | UL 444 & UL 13, Type CMR/CL3, EU RoHS 2011/65/EU, EN50575:2014 Reaction to Fire Class Dca |
| Application | Speaker Cable, Power limited not to exceed 100V |
| Conductor Material | Stranded Bare Copper |
| Conductor Size | 14AWG X 4C |
| Electrical & Physical Characteristics | Conductor Resistance: Max 9.2ohm/km at 20°C, Insulation Resistance: Min 50MΩ/km at 20°C, Dielectric Strength: Min AC1.5KV |
| Operating Temperature Range | 20°C to 75°C |
| Insulation/Jacket Material | PVC |
| Tensile Strength (Unaged/Aged) | 13.8Mpa / 11.7Mpa (100°C 168h) |
| Elongation (Unaged/Aged) | 100% / 50% (100°C 168h) |
| Min. Bend Radius | 15D/120mm |
| Colors | Black, Red, White, Green |
| Packaging | 500ft/Box, Approx. Weight: 22kgs/48.501lbs, Approx. Dimension: 310x340x350mm, Packages per Pallet: 36 |
