ORIGIN PRO

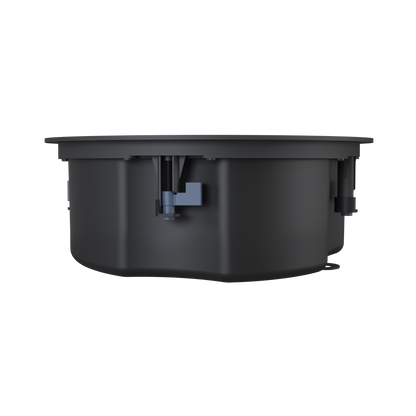

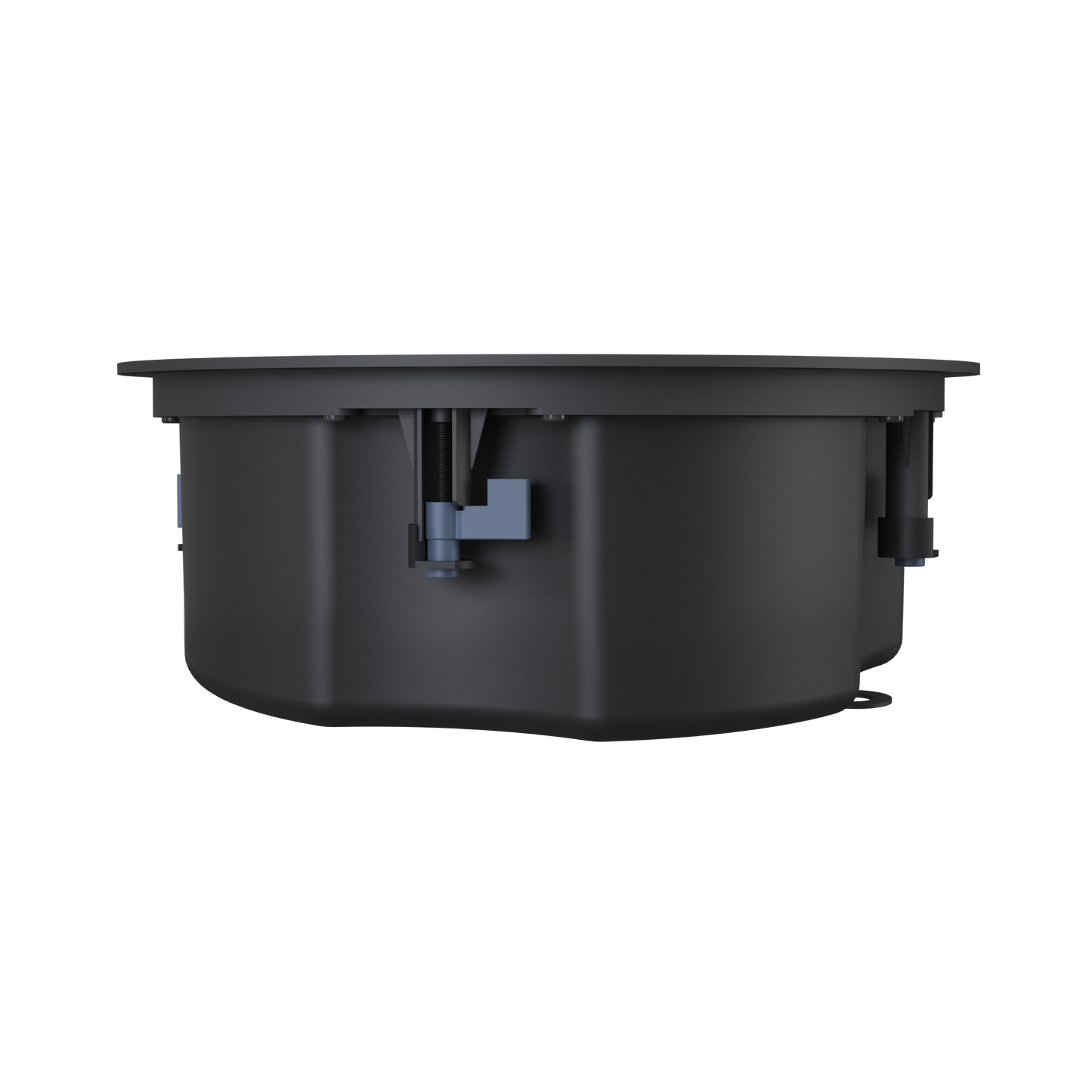

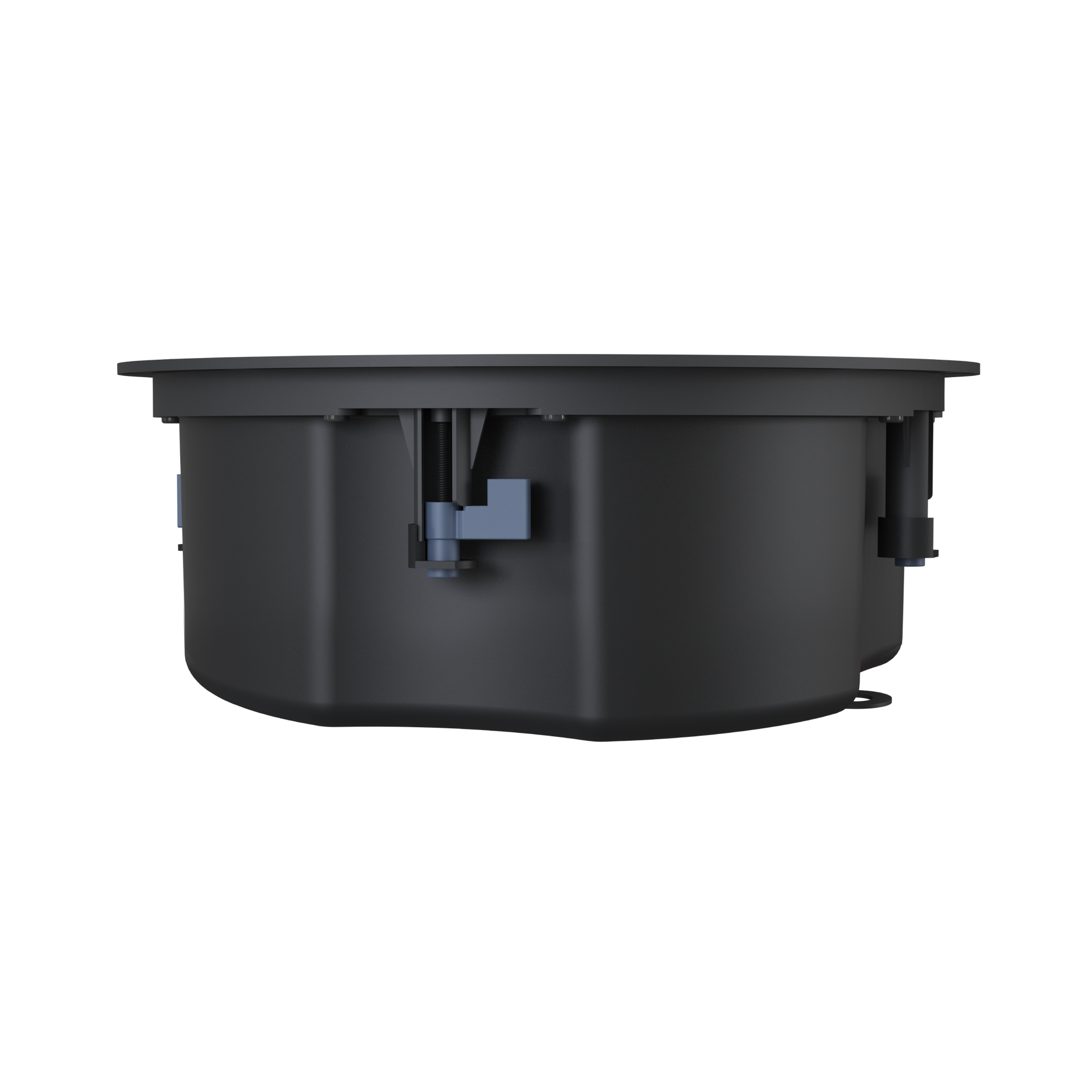

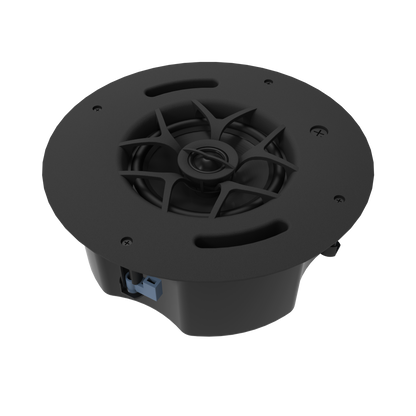

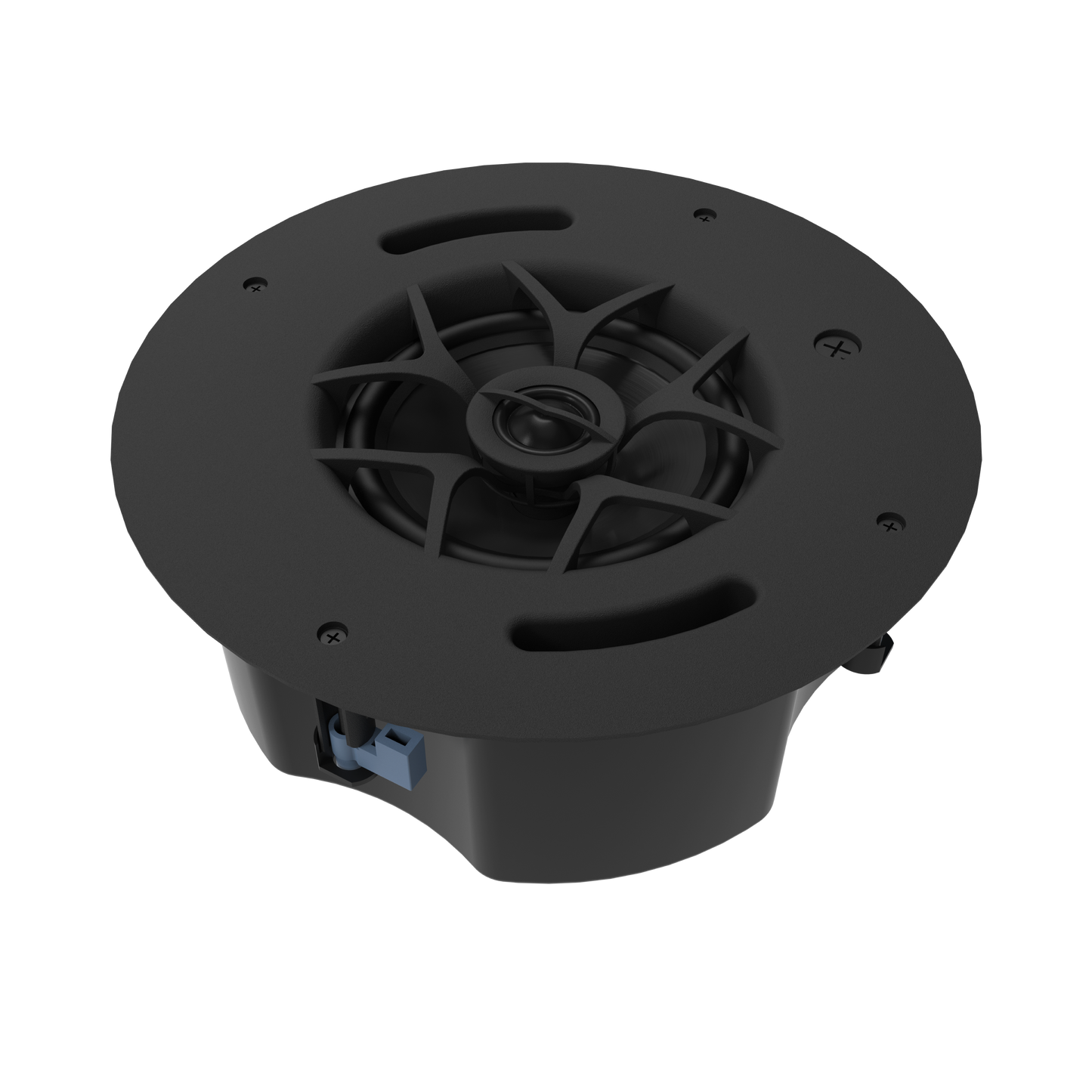

Origin PC60S 2 Way 70/100v Line InCeiling Speaker

Origin PC60S 2 Way 70/100v Line InCeiling Speaker

SKU:OA-PC60S

Regular price $0.00 AUD
Regular price $0.00 AUD Sale price $0.00 AUD
Sale Sold Out

Email: sales@oceanicdistribution.com for any sales enquiries

Origin Acoustics PC60

Key Features

  • Enhanced sound clarity and depth
  • Robust construction for professional use
  • Easy to install and maintain
  • Compatible with various audio setups
  • Elegant design for aesthetic appeal
  • 2 Way 70/100v Line In-Ceiling Speaker
  • 6.5" Polypropylene Woofer
  • 1" Silk DSPD Tweeter (Pivoting)
  • 91dB Sensitivity
  • 64Hz - 20kHz Frequency Range
  • 115 Degrees Conical Coverage Area
  • Trans. Taps: 60w, 30w, 15w, 7.5w, 8 Ohm

Product Overview

The PC60 speaker, part of Origin Acoustics' Professional Collection, is designed for superior audio experiences in professional environments.

PC60

Part: SPC60000B, SPC60000W

Woofer: 6 1/2" IMPP

Tweeter: 1" Silk DSPD MMP

Power Handling (Program Power): 80 Watts

Power Handling (Continuous Pink Noise): 40 Watts

Frequency Response(-10db): 50Hz - 20kHz

Frequency Response (-3db): 64Hz - 20kHz

Nominal Coverage Angle: 115° Conical Coverage

Sensitivity: 91dB

Rated Maximum SPL: 108dB

Impedance: 6 Ohm/70V/100V

Transformer Taps: 70V - 60W, 30W, 15W, 7.5W | 100V - 60W, 30W, 15W

Diameter: 9 5/8" (244mm)

Cutout Diameter: 8 13/16" (224mm)

Grille Diameter: 10" (254mm)

Mounting Depth: 8" (202mm)

Feature: Metal Can, Zinc Plated

Colors: Black
