Key Features

• Superior sound quality for enhanced listening experience
• Effortless integration into all decors
• User-friendly installation with smart application
• Durable construction for prolonged use
• Next-generation technology for crisp audio
• 2 Way 70/100v Line Pendant Speaker
• 5.25" Polypropylene Woofer
• Integrated 5" Rear Passive Radiator
• 1" Silk DSPD Tweeter (Pivoting)
• 88dB Sensitivity
• 75Hz - 20kHz Frequency Range
• 120 Degrees Conical Coverage Area
• Black Or White Textured Finish
• Trans. Taps: 30w, 15w, 7.5w, 3.8w, 8 Ohm

Product Overview

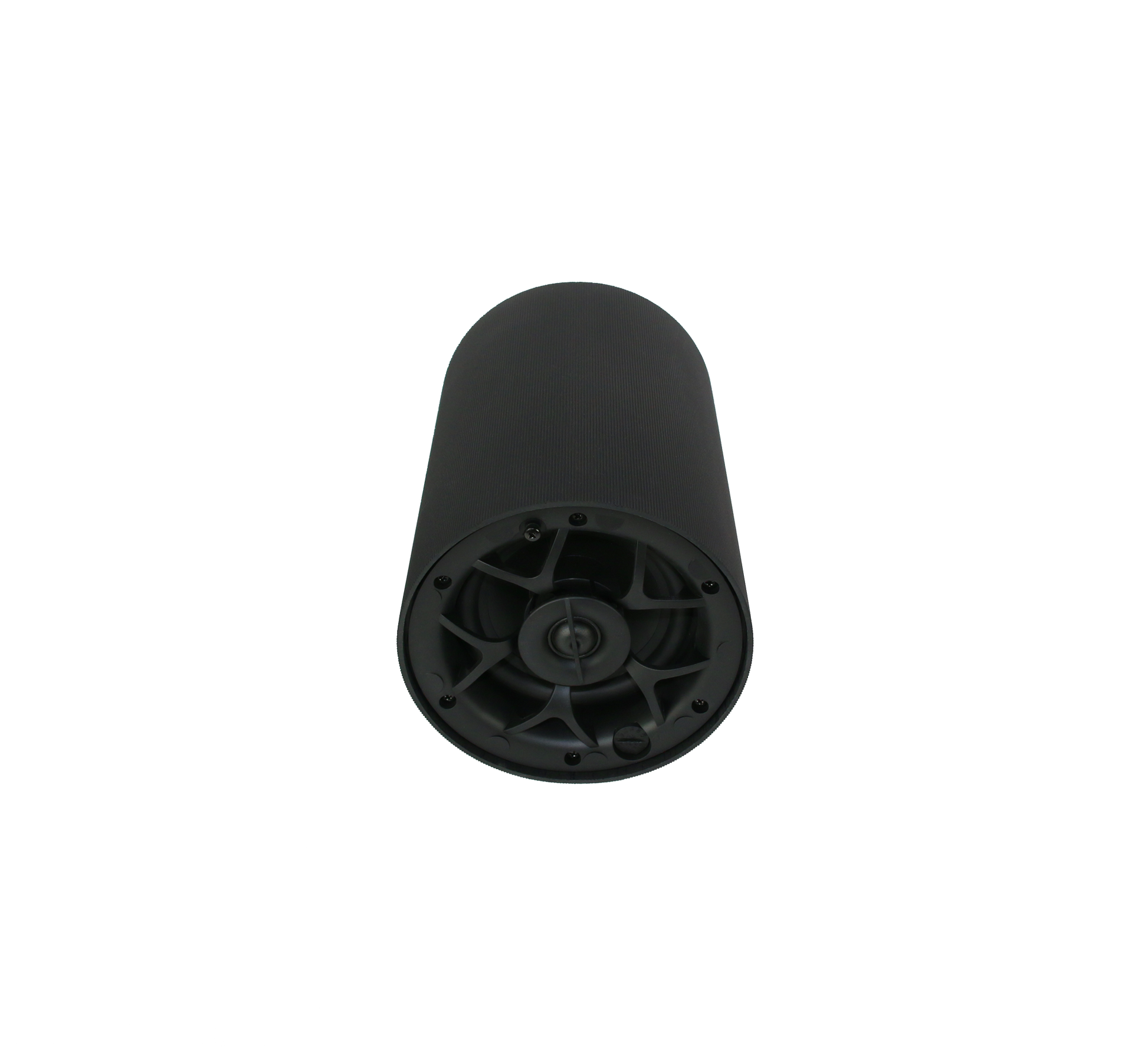

Experience immersive, crystal-clear sound with the Origin Acoustics PP50B. This robust speaker integrates effortlessly into any décor, providing superior sound quality that enhances your listening experience. With its user-friendly installation and next-generation technology, the PP50B is built to last, offering crisp and clear audio for years to come. Discover the difference with Origin Acoustics PP50B.

PP50

Part: SPP50000B, SPP50000W

Woofer: 5 1/4" (133mm) Polypropylene

Tweeter: 1” (25mm) Silk DSPD™ MMP™

Power Handling (Program Power): 100 Watts

Power Handling (Continuous Pink Noise): 50 Watts

Freq. Response(-10dB): 57Hz - 20kHz

Freq. Response(-3dB): 75Hz - 20kHz

Nominal Coverage Angle: 120° Conical Coverage

Sensitivity: 87dB

Rated Maximum SPL: 105dB

Impedance: 8 ohm nominal

Transformer Taps: 70V - 30W, 15W, 7.5W, 3.75W | 100V - 30W, 15W, 7.5W

Diameter: 170mm

Length: 267mm

Feature: 5” Passive Radiator

Colors: Black, White
