Key Features

• High-quality sound in all environments
• Durable materials maintain longevity
• Effortless installation and setup
• Adaptable to all types of decors
• Modern design complements your space
• 2 Way 70/100v Line Pendant Speaker
• 8" Polypropylene Woofer
• Integrated 8" Rear Passive Radiator
• 1" Silk DSPD Tweeter (Pivoting)
• 88dB Sensitivity
• 57Hz - 20kHz Frequency Range
• 110 Degrees Conical Coverage Area
• Black Or White Textured Finish
• Trans. Taps: 60w, 30w, 15w, 7.5w, 8 Ohm

Product Overview

Experience superior audio with Origin Acoustics PP80B from the Professional Collection. Known for its high-quality sound, it thrives in all environments. Designed with durable materials for long-lasting use and easy installation. Its modern design can adapt to any decor, effortlessly blending in while enhancing the ambiance of your space. It's more than a sound system; it's an immersive audio experience.

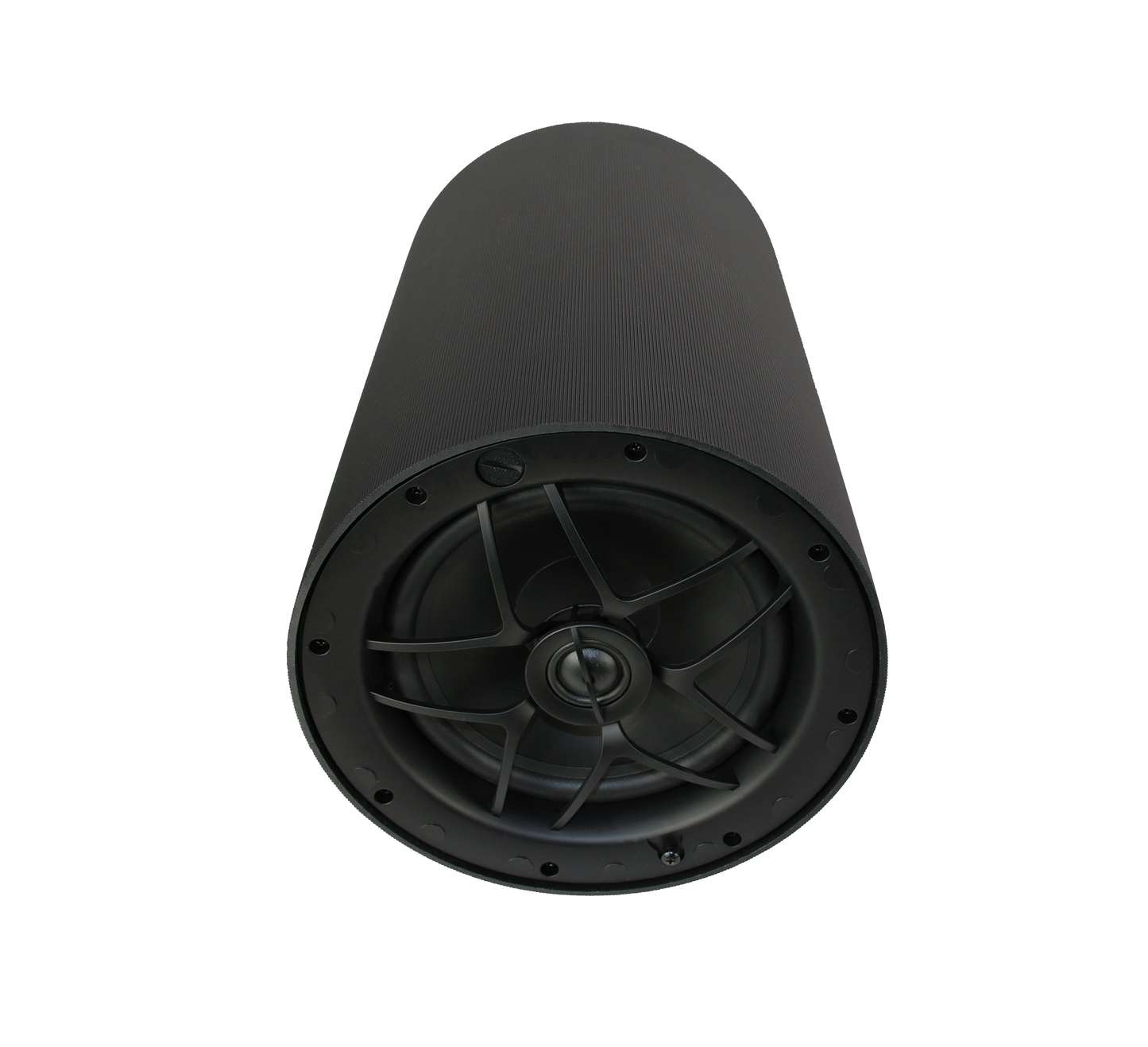

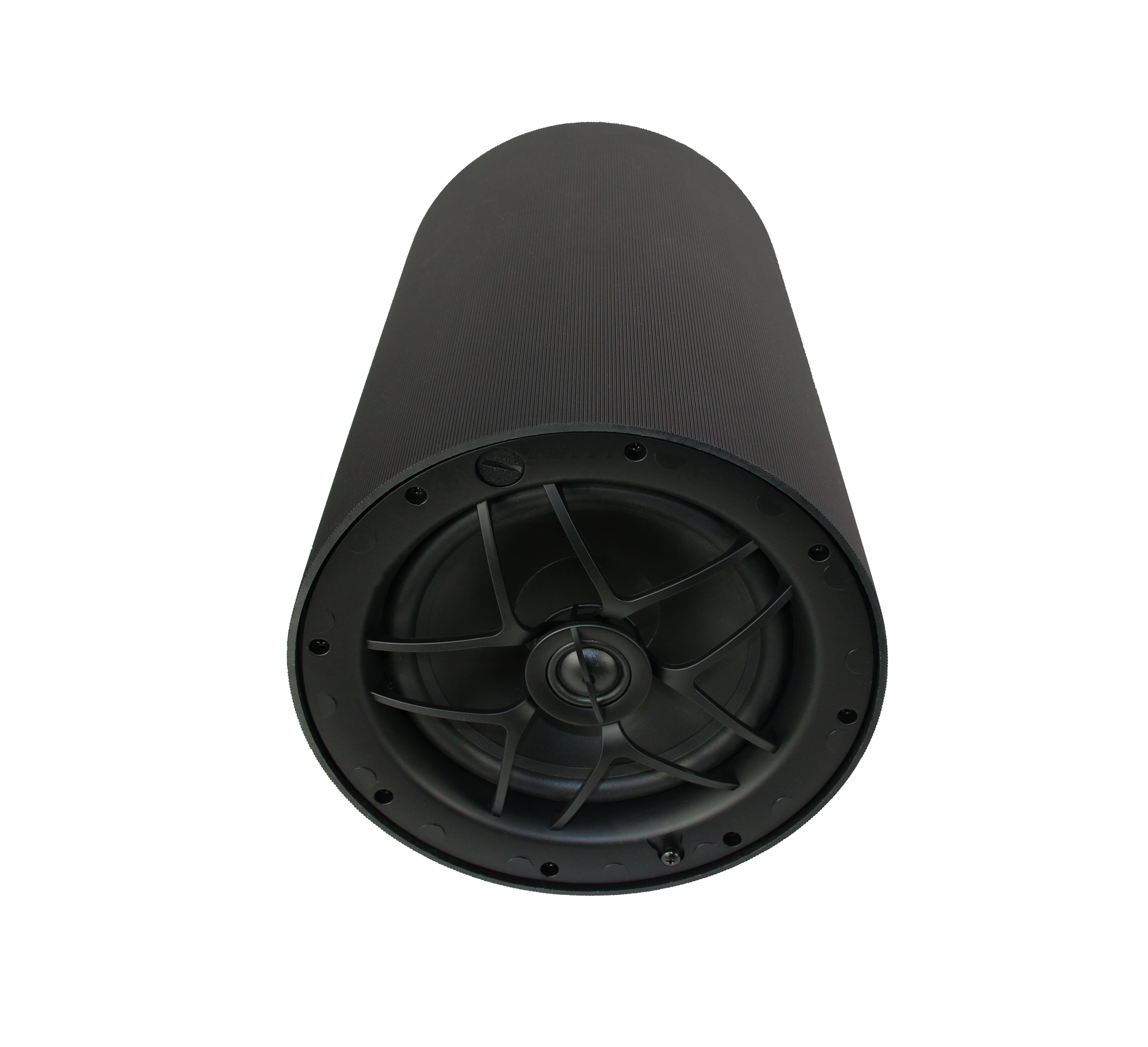

PP80

Part: SPP80000B, SPP80000W

Woofer: 8" (203mm) Polypropylene

Tweeter: 1" (25mm) Silk DSPD MMP

Power Handling (Program Power): 200 Watts

Power Handling (Continuous Pink Noise): 100 Watts

Freq. Response(-10dB): 42Hz - 20kHz

Freq. Response(-3dB): 57Hz - 20kHz

Nominal Coverage Angle: 110° Conical Coverage

Sensitivity: 90dB

Rated Maximum SPL: 110dB

Impedance: 8 ohm nominal

Transformer Taps: 70V - 60W, 30W, 15W, 7.5W | 100V - 60W, 30W, 15W

Diameter: 254mm

Length: 412mm

Feature: 8" Passive Radiator

Colors: Black, White

Resources

DataSheet

Line Drawings
